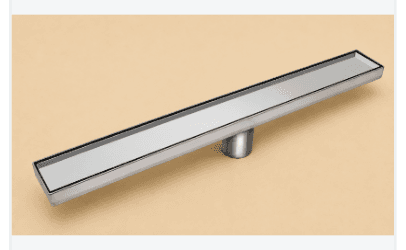

A tile-insert linear grate: a recessed tray with a thin perimeter inlet, so the finished floor runs through the channel and only a hairline gap remains for water.
Product certification is in progress and CE is not claimed. Brochure language should be read with the website compliance page.
Drag to rotate
Tileo
Tile-insert grate
SS304 / SS316
EN 1253 · K3 · tileable height max. 12 mm
Representative model · not to scale
Construction
Inside the channel
FIG. 01 LINEAR CHANNEL CROSS-SECTION
WTI · NOT TO SCALE
An SS304 / SS316 linear shower channel with a removable grate. Tileable height max. 12mm, load class K3. Lengths 600 / 700 / 800 / 900mm (customised on request), width 75mm, height 25mm, with a 50mm pipe height and a Ø50mm vertical outlet. An integrated odour trap is published in the factory brochure.
Load class
K3
Indoor linear shower channels are specified for pedestrian wet rooms under EN 1253, load class K3 (300 kg). They are not classified on the exterior EN 1433 A15–E600 ladder.
Specification
| Material | Stainless Steel 304 / 316 |
|---|---|
| Standard | EN 1253 |
| Load class | K3 (300 kg) |
| Tileable height | max. 12mm |
| Length | 600 / 700 / 800 / 900mm (customised on request) |
| Width | 75mm |
| Height | 25mm |
| Pipe height | 50mm |
| Outlet | W-70 Ø50mm, vertical |
How to specify
Tile-insert grate
A tile-insert linear grate: a recessed tray with a thin perimeter inlet, so the finished floor runs through the channel and only a hairline gap remains for water.
EN 1253
Manufactured to comply with EN 1253 - Stainless Steel Floor Drains. Third-party certification is in progress.
Stainless Steel 304 / 316
Stainless Steel 304 / 316 - produced in-house at the Jaipur plant.
• The range
Compared to its siblings
Against every other linear grate, Tileo is the only tile-insert option. Specify it when invisibility is the brief; specify Lineo, Oval or Rectanglo when the metal pattern is intentional.
Tileo
Vs
Lineo
Tile-insert grate
Staggered multi-row slot grate
| Tileo | Attribute | Lineo |
|---|---|---|
| Tile-insert tray | Grate | Staggered multi-row slots |
| Perimeter hairline inlet | Openings | Three rows, running with the channel |
| Tile-flush - metal recedes | Finished face | Stainless on show |
| K3 (300 kg) | Load class | K3 (300 kg) |
| max. 12mm | Tileable height | max. 12mm |
| SS304 / SS316 | Material | SS304 / SS316 |
| 600 / 700 / 800 / 900mm | Length | 600 / 700 / 800 / 900mm |
| EN 1253 | Standard | EN 1253 |
| When the drain should disappear | Specify when | Linear slots that sit with large-format tile |
