Rectanglo

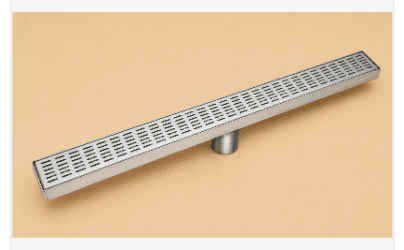

A linear shower channel with a high-density staggered grid of identical oblong rectangular slots running along the grate. Alternating rows offset by half the along-channel pitch, thin consistent webs between openings, and a continuous unperforated perimeter frame.
Product certification is in progress and CE is not claimed. Brochure language should be read with the website compliance page.
Drag to rotate
Rectanglo
Staggered oblong perforation grid
SS304 / SS316
EN 1253 · K3 · tileable height max. 12 mm
Representative model · not to scale
Construction
Inside the channel
FIG. 01 LINEAR CHANNEL CROSS-SECTION
WTI · NOT TO SCALE
An SS304 / SS316 linear shower channel with a removable grate. Tileable height max. 12mm, load class K3. Lengths 600 / 700 / 800 / 900mm (customised on request), width 75mm, height 25mm, with a 50mm pipe height and a Ø50mm vertical outlet. An integrated odour trap is published in the factory brochure.
Load class
K3
Indoor linear shower channels are specified for pedestrian wet rooms under EN 1253, load class K3 (300 kg). They are not classified on the exterior EN 1433 A15–E600 ladder.
Specification
| Material | Stainless Steel 304 / 316 |
|---|---|
| Standard | EN 1253 |
| Load class | K3 (300 kg) |
| Tileable height | max. 12mm |
| Length | 600 / 700 / 800 / 900mm (customised on request) |
| Width | 75mm |
| Height | 25mm |
| Pipe height | 50mm |
| Outlet | W-70 Ø50mm, vertical |
How to specify
Staggered oblong perforation grid
A linear shower channel with a high-density staggered grid of identical oblong rectangular slots running along the grate. Alternating rows offset by half the along-channel pitch, thin consistent webs between openings, and a continuous unperforated perimeter frame.
EN 1253
Manufactured to comply with EN 1253 - Stainless Steel Floor Drains. Third-party certification is in progress.
Stainless Steel 304 / 316
Stainless Steel 304 / 316 - produced in-house at the Jaipur plant.
• The range
Compared to its siblings
Against Oval, Rectanglo is a packed field of short along-channel oblongs rather than one full-width stadium field. Against Lineo, every slot is the same short oblong in a brick-staggered grid, rather than three lanes of mixed-length runs. Against Tileo, the stainless pattern stays visible.
Rectanglo
Vs
Lineo
Staggered oblong perforation grid
Staggered multi-row slot grate
| Rectanglo | Attribute | Lineo |
|---|---|---|
| Staggered oblong perforation grid | Grate | Staggered multi-row slots |
| Identical short slots, rows offset by half pitch | Openings | Three rows, running with the channel |
| Stainless on show | Finished face | Stainless on show |
| K3 (300 kg) | Load class | K3 (300 kg) |
| max. 12mm | Tileable height | max. 12mm |
| SS304 / SS316 | Material | SS304 / SS316 |
| 600 / 700 / 800 / 900mm | Length | 600 / 700 / 800 / 900mm |
| EN 1253 | Standard | EN 1253 |
| A dense punched field with geometric tile | Specify when | Linear slots that sit with large-format tile |
