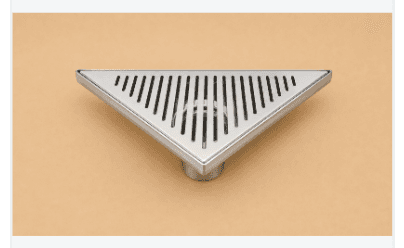

An isosceles SS304 / SS316 triangular point drain - 350 × 250 × 30mm with a 50mm pipe height - whose grate is a fan of stadium slots, longest toward the centre, with the outlet under the middle of the cover.
Product certification is in progress and CE is not claimed. Brochure language should be read with the website compliance page.
Drag to rotate
SS304 / SS316 gully
EN 1253 · load class K3
Point-Trianglo
Vertical outlet
Representative model · not to scale
Construction
Inside the gully
FIG. 01 POINT DRAIN, PLAN
WTI · NOT TO SCALE
An SS304 / SS316 floor gully for a single floor point. Square sizes are 100, 125 and 150mm, height 25mm, pipe height 20mm. Point-Trianglo is a triangular body at 350 × 250 × 30mm with a 50mm pipe height. Load class K3.
Load class
K3
Indoor point drains are published at load class K3 (300 kg) under EN 1253 - pedestrian wet rooms, showers and utility floors, not vehicular traffic.
Specification
| Material | Stainless Steel 304 / 316 |
|---|---|
| Standard | EN 1253 |
| Load class | K3 (300 kg) |
| Size | Square 100 / 125 / 150mm; Trianglo 350 × 250mm |
| Height | Square 25mm; Trianglo 30mm |
| Pipe height | Square 20mm; Trianglo 50mm |
| Height adjustment | 7–40mm (frame) |
| Marble / tile height | max. 18mm |
| Outlet | Vertical |
How to specify

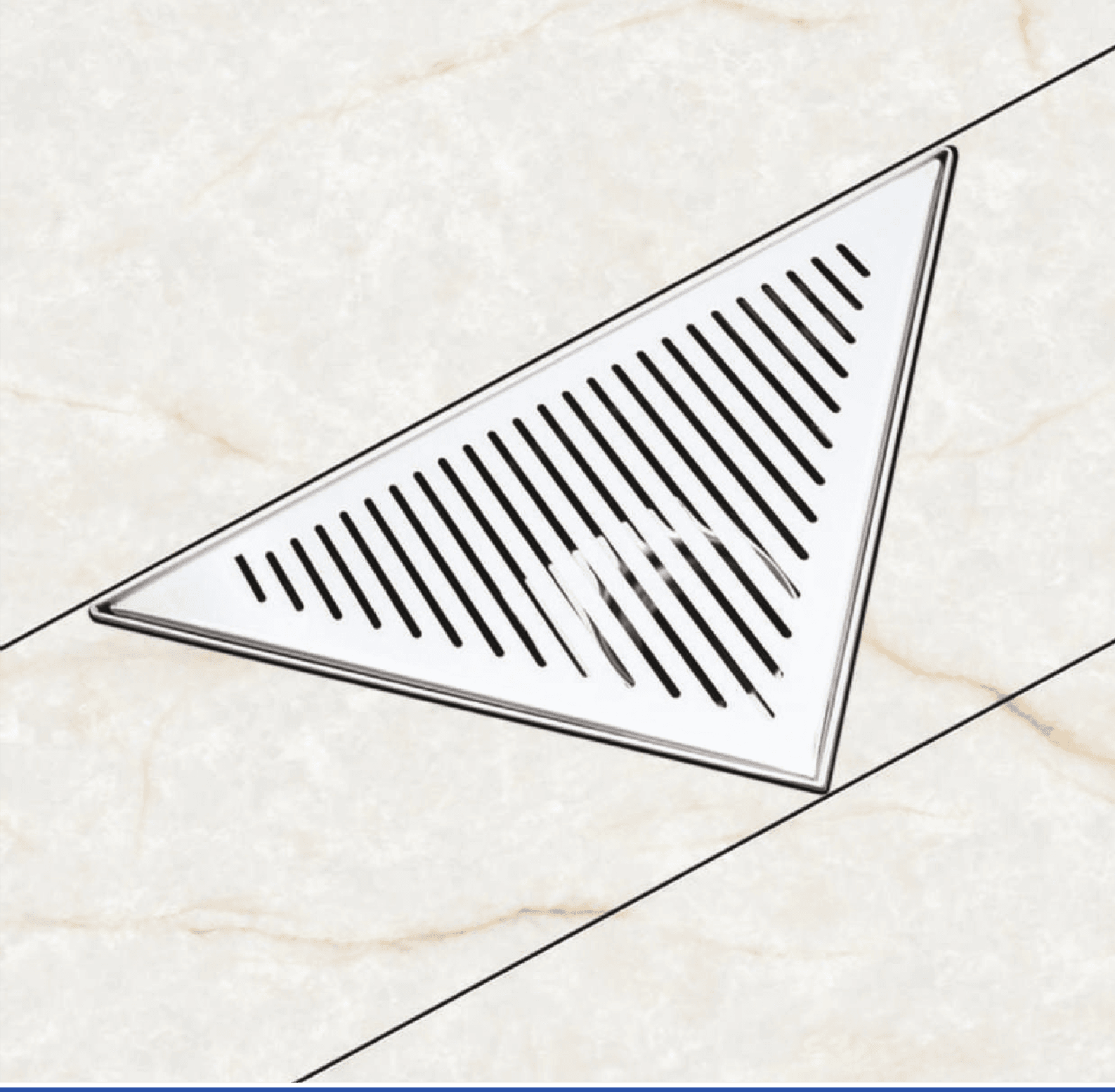

Triangular fan-slot grate
An isosceles SS304 / SS316 triangular point drain - 350 × 250 × 30mm with a 50mm pipe height - whose grate is a fan of stadium slots, longest toward the centre, with the outlet under the middle of the cover.
EN 1253
Manufactured to comply with EN 1253 - Stainless Steel Floor Drains. Third-party certification is in progress.
Stainless Steel 304 / 316
Stainless Steel 304 / 316 - produced in-house at the Jaipur plant.
• The range
Compared to its siblings
Against every other point drain, Point-Trianglo is the only triangular body. The square gullies (Rectanglo, Oval, Tileo, Squaro) sit as squares in the floor; this one is a three-sided cover with a radial slot fan.
Point-Trianglo
Vs
Point-Rectanglo
Triangular fan-slot grate
Concentric rectangular-slot grate
| Point-Trianglo | Attribute | Point-Rectanglo |
|---|---|---|
| Fan of stadium slots | Grate | Concentric rectangular slots |
| Isosceles triangular gully | Body | Square gully |
| Stainless on show | Finished face | Stainless on show |
| K3 (300 kg) | Load class | K3 (300 kg) |
| 350 × 250 × 30 mm | Size | 100–150mm |
| EN 1253 | Standard | EN 1253 |
| When a triangular grate is drawn | Specify when | Compact wet areas, geometric tile |
