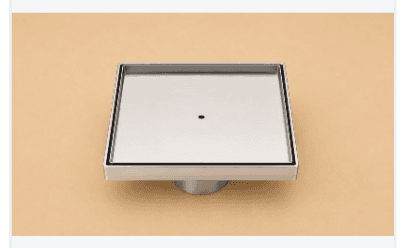

A compact SS304 / SS316 point drain with a recessed tile-insert tray - a solid square well, a hairline perimeter inlet, and a small centre opening, so the finished floor can run through the drain.
Product certification is in progress and CE is not claimed. Brochure language should be read with the website compliance page.
Drag to rotate
SS304 / SS316 gully
EN 1253 · load class K3
Point-Tileo
Vertical outlet
Representative model · not to scale
Construction
Inside the gully
FIG. 01 POINT DRAIN, PLAN
WTI · NOT TO SCALE
An SS304 / SS316 floor gully for a single floor point. Square sizes are 100, 125 and 150mm, height 25mm, pipe height 20mm. Point-Trianglo is a triangular body at 350 × 250 × 30mm with a 50mm pipe height. Load class K3.
Load class
K3
Indoor point drains are published at load class K3 (300 kg) under EN 1253 - pedestrian wet rooms, showers and utility floors, not vehicular traffic.
Specification
| Material | Stainless Steel 304 / 316 |
|---|---|
| Standard | EN 1253 |
| Load class | K3 (300 kg) |
| Size | Square 100 / 125 / 150mm; Trianglo 350 × 250mm |
| Height | Square 25mm; Trianglo 30mm |
| Pipe height | Square 20mm; Trianglo 50mm |
| Height adjustment | 7–40mm (frame) |
| Marble / tile height | max. 18mm |
| Outlet | Vertical |
How to specify
Tile-insert point drain

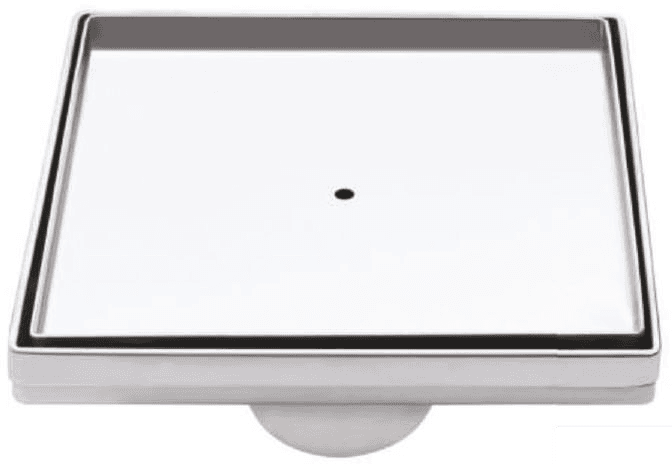

A compact SS304 / SS316 point drain with a recessed tile-insert tray - a solid square well, a hairline perimeter inlet, and a small centre opening, so the finished floor can run through the drain.
EN 1253
Manufactured to comply with EN 1253 - Stainless Steel Floor Drains. Third-party certification is in progress.
Stainless Steel 304 / 316
Stainless Steel 304 / 316 - produced in-house at the Jaipur plant.
• The range
Compared to its siblings
Against the slotted point drains (Rectanglo, Oval, Trianglo, Squaro), Point-Tileo has no decorative grate pattern - only a recessed tray, a perimeter gap, and a small centre opening.
Point-Tileo
Vs
Point-Rectanglo
Tile-insert point drain
Concentric rectangular-slot grate
| Point-Tileo | Attribute | Point-Rectanglo |
|---|---|---|
| Recessed tile-insert tray | Grate | Concentric rectangular slots |
| Square gully | Body | Square gully |
| Tile-flush - metal recedes | Finished face | Stainless on show |
| K3 (300 kg) | Load class | K3 (300 kg) |
| 100–150mm | Size | 100–150mm |
| EN 1253 | Standard | EN 1253 |
| A matching invisible point to Tileo | Specify when | Compact wet areas, geometric tile |
