Indoor Drainage - Point / Point-Oval
Point-Oval

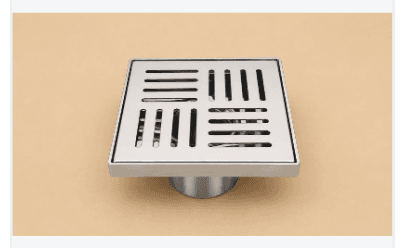

A compact SS304 / SS316 point drain with four mirrored blocks of short stadium slots - horizontal in opposite corners, vertical in the other two - separated by a solid cross through the centre.
Product certification is in progress and CE is not claimed. Brochure language should be read with the website compliance page.
Drag to rotate
SS304 / SS316 gully
EN 1253 · load class K3
Point-Oval
Vertical outlet
Representative model · not to scale
Construction
Inside the gully
FIG. 01 POINT DRAIN, PLAN
WTI · NOT TO SCALE
An SS304 / SS316 floor gully for a single floor point. Square sizes are 100, 125 and 150mm, height 25mm, pipe height 20mm. Point-Trianglo is a triangular body at 350 × 250 × 30mm with a 50mm pipe height. Load class K3.
Load class
K3
Indoor point drains are published at load class K3 (300 kg) under EN 1253 - pedestrian wet rooms, showers and utility floors, not vehicular traffic.
Specification
| Material | Stainless Steel 304 / 316 |
|---|---|
| Standard | EN 1253 |
| Load class | K3 (300 kg) |
| Size | Square 100 / 125 / 150mm; Trianglo 350 × 250mm |
| Height | Square 25mm; Trianglo 30mm |
| Pipe height | Square 20mm; Trianglo 50mm |
| Height adjustment | 7–40mm (frame) |
| Marble / tile height | max. 18mm |
| Outlet | Vertical |
How to specify

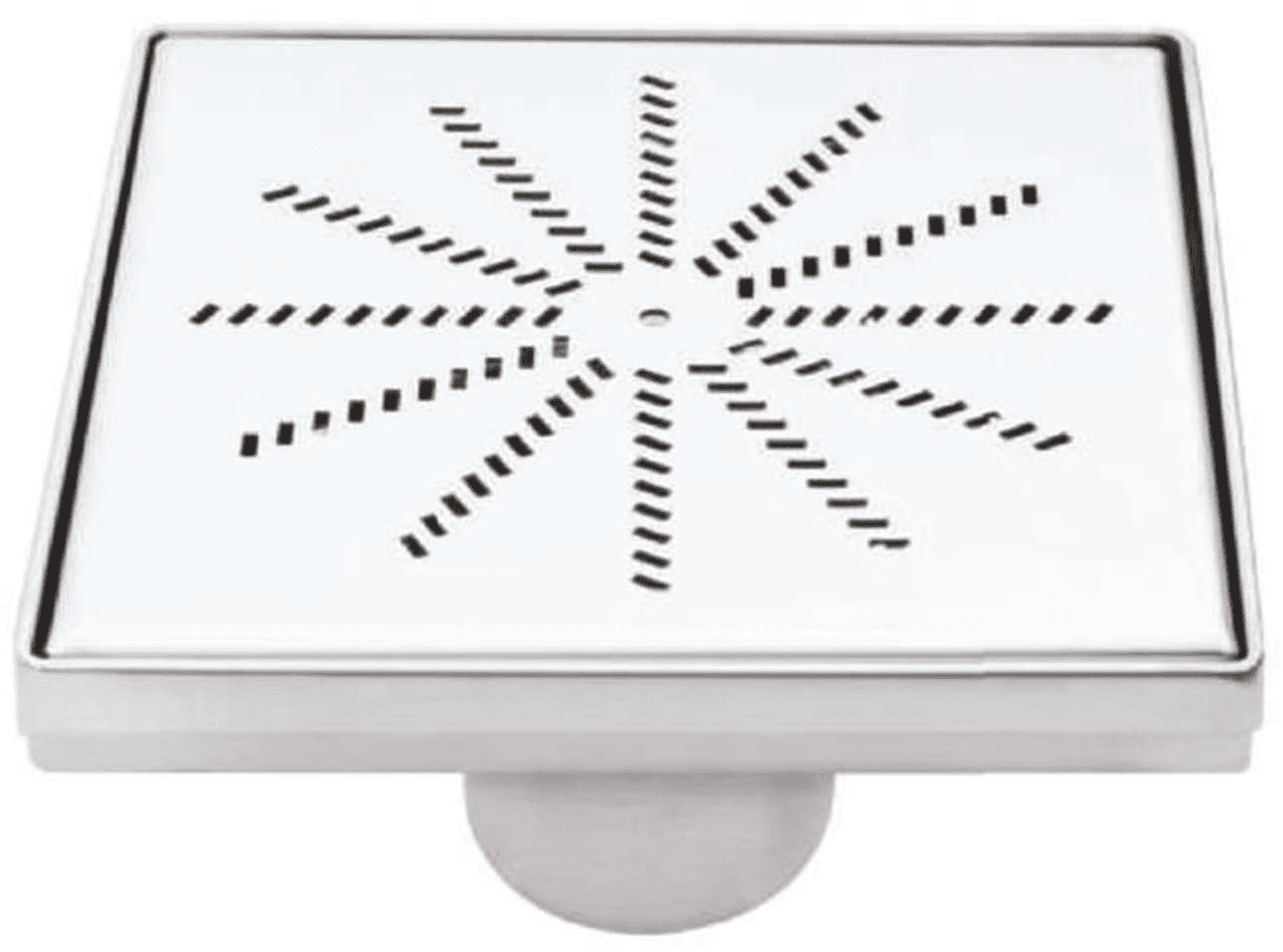

Grouped linear-slot grate
A compact SS304 / SS316 point drain with four mirrored blocks of short stadium slots - horizontal in opposite corners, vertical in the other two - separated by a solid cross through the centre.
EN 1253
Manufactured to comply with EN 1253 - Stainless Steel Floor Drains. Third-party certification is in progress.
Stainless Steel 304 / 316
Stainless Steel 304 / 316 - produced in-house at the Jaipur plant.
• The range
Compared to its siblings
Against Point-Rectanglo, Point-Oval is four slot blocks rather than concentric rectangular bands. Against Point-Squaro, the openings stay elongated stadiums, not a square grid. Against Point-Trianglo, it stays a square gully rather than a triangular cover.
Point-Oval
Vs
Point-Rectanglo
Grouped linear-slot grate

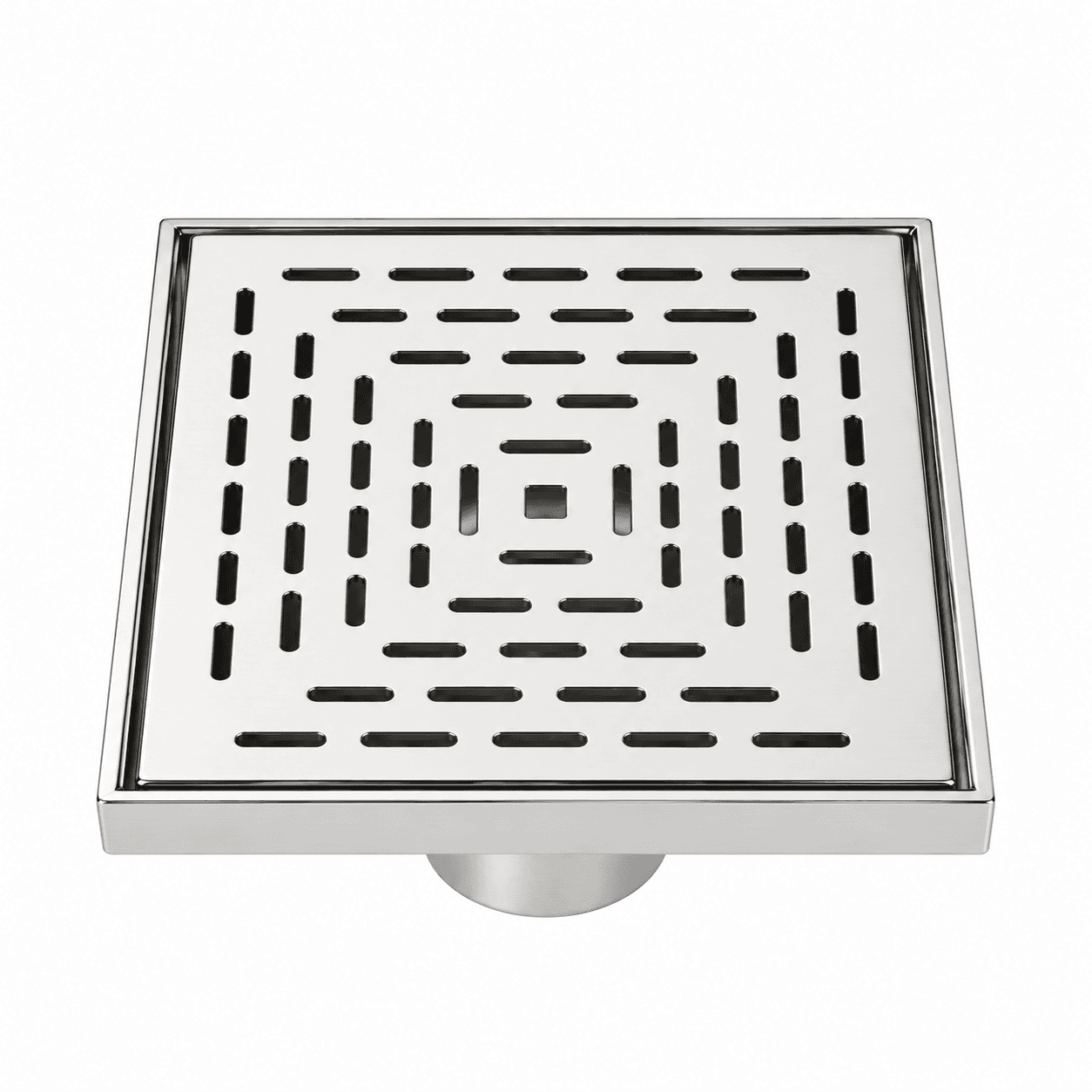

Concentric rectangular-slot grate
| Point-Oval | Attribute | Point-Rectanglo |
|---|---|---|
| Four grouped slot blocks | Grate | Concentric rectangular slots |
| Square gully | Body | Square gully |
| Stainless on show | Finished face | Stainless on show |
| K3 (300 kg) | Load class | K3 (300 kg) |
| 100–150mm | Size | 100–150mm |
| EN 1253 | Standard | EN 1253 |
| Secondary baths and utility points | Specify when | Compact wet areas, geometric tile |
