Indoor Drainage - Linear / Oval
Oval

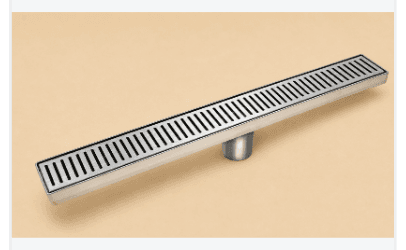

A linear shower channel with a dense field of stadium slots running across the grate - rounded ends, packed along the length - for an open stainless inlet with a softer edge than a sharp rectangle.
Product certification is in progress and CE is not claimed. Brochure language should be read with the website compliance page.
Drag to rotate
Oval
Transverse stadium-slot grate
SS304 / SS316
EN 1253 · K3 · tileable height max. 12 mm
Representative model · not to scale
Construction
Inside the channel
FIG. 01 LINEAR CHANNEL CROSS-SECTION
WTI · NOT TO SCALE
An SS304 / SS316 linear shower channel with a removable grate. Tileable height max. 12mm, load class K3. Lengths 600 / 700 / 800 / 900mm (customised on request), width 75mm, height 25mm, with a 50mm pipe height and a Ø50mm vertical outlet. An integrated odour trap is published in the factory brochure.
Load class
K3
Indoor linear shower channels are specified for pedestrian wet rooms under EN 1253, load class K3 (300 kg). They are not classified on the exterior EN 1433 A15–E600 ladder.
Specification
| Material | Stainless Steel 304 / 316 |
|---|---|
| Standard | EN 1253 |
| Load class | K3 (300 kg) |
| Tileable height | max. 12mm |
| Length | 600 / 700 / 800 / 900mm (customised on request) |
| Width | 75mm |
| Height | 25mm |
| Pipe height | 50mm |
| Outlet | W-70 Ø50mm, vertical |
How to specify
Transverse stadium-slot grate
A linear shower channel with a dense field of stadium slots running across the grate - rounded ends, packed along the length - for an open stainless inlet with a softer edge than a sharp rectangle.
EN 1253
Manufactured to comply with EN 1253 - Stainless Steel Floor Drains. Third-party certification is in progress.
Stainless Steel 304 / 316
Stainless Steel 304 / 316 - produced in-house at the Jaipur plant.
• The range
Compared to its siblings
Against Rectanglo, Oval is one full-width stadium field rather than a staggered grid of short along-channel oblongs. Against Lineo, the slots run across the channel rather than along it. Against Drop, it stays slotted, not perforated.
Oval
Vs
Lineo
Transverse stadium-slot grate
Staggered multi-row slot grate
| Oval | Attribute | Lineo |
|---|---|---|
| Transverse stadium slots | Grate | Staggered multi-row slots |
| One dense field across the grate | Openings | Three rows, running with the channel |
| Stainless on show | Finished face | Stainless on show |
| K3 (300 kg) | Load class | K3 (300 kg) |
| max. 12mm | Tileable height | max. 12mm |
| SS304 / SS316 | Material | SS304 / SS316 |
| 600 / 700 / 800 / 900mm | Length | 600 / 700 / 800 / 900mm |
| EN 1253 | Standard | EN 1253 |
| Open inlet with a softer slot edge | Specify when | Linear slots that sit with large-format tile |
