Lineo

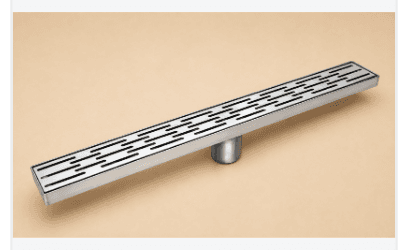

An electro-polished SS304 linear shower channel with three longitudinal rows of rounded-end slots - outer rows aligned, centre row staggered, lengths mixed short-to-long - so the grate reads as a broken, interlocking band along the shower floor.
Product certification is in progress and CE is not claimed. Brochure language should be read with the website compliance page.
Drag to rotate
Lineo
Staggered multi-row slot grate
SS304 / SS316
EN 1253 · K3 · tileable height max. 12 mm
Representative model · not to scale
Construction
Inside the channel
FIG. 01 LINEAR CHANNEL CROSS-SECTION
WTI · NOT TO SCALE
An SS304 / SS316 linear shower channel with a removable grate. Tileable height max. 12mm, load class K3. Lengths 600 / 700 / 800 / 900mm (customised on request), width 75mm, height 25mm, with a 50mm pipe height and a Ø50mm vertical outlet. An integrated odour trap is published in the factory brochure.
Load class
K3
Indoor linear shower channels are specified for pedestrian wet rooms under EN 1253, load class K3 (300 kg). They are not classified on the exterior EN 1433 A15–E600 ladder.
Specification
| Material | Stainless Steel 304 / 316 |
|---|---|
| Standard | EN 1253 |
| Load class | K3 (300 kg) |
| Tileable height | max. 12mm |
| Length | 600 / 700 / 800 / 900mm (customised on request) |
| Width | 75mm |
| Height | 25mm |
| Pipe height | 50mm |
| Outlet | W-70 Ø50mm, vertical |
How to specify
Staggered multi-row slot grate
An electro-polished SS304 linear shower channel with three longitudinal rows of rounded-end slots - outer rows aligned, centre row staggered, lengths mixed short-to-long - so the grate reads as a broken, interlocking band along the shower floor.
EN 1253
Manufactured to comply with EN 1253 - Stainless Steel Floor Drains. Third-party certification is in progress.
Stainless Steel 304 / 316
Stainless Steel 304 / 316 - produced in-house at the Jaipur plant.
• The range
Compared to its siblings
Against Oval, Lineo's slots run with the channel, not across it. Against Rectanglo, Lineo is three mixed-length lanes rather than a dense staggered field of identical oblongs. Against Drop, it stays slotted rather than perforated. Against Tileo, the stainless face stays on show.
Lineo
Vs
Drop
Staggered multi-row slot grate
Geometric circle-cluster grate
| Lineo | Attribute | Drop |
|---|---|---|
| Staggered multi-row slots | Grate | Circle-cluster perforations |
| Three rows, running with the channel | Openings | Repeating square modules of holes |
| Stainless on show | Finished face | Stainless on show |
| K3 (300 kg) | Load class | K3 (300 kg) |
| max. 12mm | Tileable height | max. 12mm |
| SS304 / SS316 | Material | SS304 / SS316 |
| 600 / 700 / 800 / 900mm | Length | 600 / 700 / 800 / 900mm |
| EN 1253 | Standard | EN 1253 |
| Linear slots that sit with large-format tile | Specify when | A geometric band, not a slot grate |
